Brave New Velo is a journal documenting the progress of building a new Soma Smoothie bicycle and the experience of such an endeavor for the first time. Thoughts, discoveries, trials and tribulations will be shared.

Thursday, September 1, 2011

And This Is Why I Don't Ride With A Carbon Fork...

Friday, August 26, 2011

These Are Not the Bar End Plugs You Are Looking For

At least that's what they would have told me at Obi Wan's Cyclery about these ODI bar end plugs. After a Summer distracted by many things velo related, I've returned to the web log about the building of a Soma Smoothie bicycle. Today I relate my experience with the fancy, fine-crafted ODI aluminum bar end plugs. They are a lovely sight to behold with their shimmering aluminum finish, BUT disappointingly do not fit a standard road bar. The problem? The adjustable wedge system which secures the plug to the inside of the bar end is not wide enough, therefore requiring a shim in the remaining gap assuring a tight fit. Ah, yet another shim on this bike.


What's more is the diameter of the cap of the plug is so wide that if you aren't using a thick bar tape, like cork (which I happen to prefer anyhow), there will be overhang (for lack of a better term). In fact I needed to apply a small strip of tape on the end of the bar under the wrap in order for the tape to be flush with the plug. If I were using a bar with a smaller diameter there would be even more overhang! Would I have needed a triple layer of tape on the end?



The little imperfections I must endure. All part of the adventure of building a bicycle.

Friday, April 1, 2011

Shiny Happy Hub

A double post today! These White Industries hubs are so beautifully designed and crafted I just can't help but admire them.
 The White Industries H3 rear hub.

Assembly Update: Gettin' Fit


An hour here, a couple hours there. I have bits of time from day to day to gradually complete the Soma Smoothie. So I'm at the point of the build where I need to adjust the fit of the bike to know how much steerer tube to chop off. This is the second road bike I've ever owned. What it has in common with the first is a stock frame size of 56cm. I am a tall 5'9" just shy of 5'10"(l77cm). When I was 17 yrs. old and bought that first bike, a Centurion LeMans RS, I was about an inch shorter and probably barely tall enough for that frame. I figured this time around 56cm would be just right but as I adjust the bike to fit I wonder if 54cm is a preferable option. Although this is a trial and error process of learning what frame size fits best. It will take quite a bit of fine tuning to get all of the adjustments just so and that will require some miles on the road. By the time I have the fit dialed in I may find the size is just fine. A lesson learned going into any bike build is knowing certain details, dimensions and measurements that I need in a frame, and subsequently parts, that suit me and my body.

Traditionally I have fit my bikes simply by how the adjustments feel. This time I am trying to take a more clinical approach using tested and tried guidelines for fitting. To get the bike to a point of basic adjustment I followed a simple, logical method by Peter White of Peter White Cycles. From here I can make the necessary finite tweaks and turns. Perhaps even a professional fitting is in my future.

Sunday, March 27, 2011

Campagnolo Doesn't Care About You

That is if you ride a traditional steel frame, Campagnolo doesn't care about you. Why would I say such a thing about the beloved and legendary components manufacturer? They don't make a 27.2mm size front derailleur clamp is why. I assume this is a business decision. Maybe they've concluded there is not enough demand. That's too bad; for us that is. I know there are some out there on the used market, but I don't want used and I don't want an older design. I want a current design that compliments the other current Campy components. So then I am forced to choose the 32mm clamp and make do. Thank you Campagnolo. I mean that with both sincerity and sarcasm. As seen in the above photo I have inserted a shim to adapt the larger clamp to the smaller seat tube.

I made the shim with two layers of rubber strips. One would suffice depending on the thickness of the rubber. In my case I had two sizes of rubber shims from a head lamp clamp. The thicker of the two was too large but by doubling up the thinner option it was just right. I cut the thin shim into two strips and they were the perfect width to match that of the clamp. Only a little finesse was required to position the strips neatly between the clamp and seat tube. Voila, the clamp is in place.

Saturday, March 26, 2011

God Is In The Details

The Soma Smoothie build is now getting down to the details. Decisions about these aren't as little as the parts themselves. For example, the dimensions of the steel tubing of this frame are traditional which means sorting through a selection predominantly comprised of parts designed for the over-sized tubing of carbon frames. It's like a treasure hunt in the case of finding a proper front derailleur clamp. Campagnolo unfortunately - foolishly - does not make a 27.2mm size clamp. Therefore I had to find another viable option, and didn't. There are a couple of companies I discovered that make an alloy clamp in the size I need but the design of these is primitive. I found them unacceptable. So I bought the 32mm size Campagnolo clamp and will have to adapt it to fit. No problem. Call me superficial if you will but I also like the fact that there will be a Campy brand clamp to accommodate the Campy brand derailleur.

The other seemingly simple choice I had to make was on a pair of bar end plugs. Some are content with the plastic pair that come with most packs of bar tape. Once again, unacceptable. Adhering with the rest of the detailing scheme on the bike I want alloy. Lucky for me Soma makes just these very sort of bar end plugs. But after some shopping around I learned that the plugs are simply plastic with some kind of alloy looking finish. Fortunately I found this lovely pair of aluminum plugs made by ODI that compliment the bike nicely. It really is all in the details.

Saturday, March 19, 2011

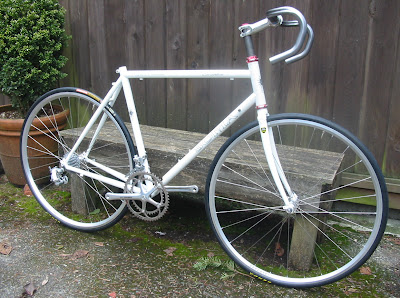

Assembly Update

While I was watching stage five of this year's edition of Tirreno-Adriatico I tinkered on the bike a little. Do people still tinker these days? Or does that sound amateurish? Too buffoonish? Instead they "engineer" or "fabricate". The Soma Smoothie is coming together nicely.
